ORIS TRACC
Premium bicycle carrier for the towbar
Are you looking for a high-quality bike carrier for the towbar that impresses with its simple installation and safe bike and e-bike transport? Congratulations: you’ve found it! The ORIS TRACC bike carrier impresses with its convenient, particularly easy and safe handling and installation . The premium bike carrier has a high-quality finish and is absolutely stable thanks to the high-strength steel and aluminium construction of the load-bearing components.
- Premium quality
- Bicycle carrier for the towbar
- Suitable for e-bikes
- Foldable
The ORIS TRACC bike carrier is so convenient and easy to use
Thanks to its clever and tool-free quick-release system, the ORIS TRACC can be mounted on the towbar in just a few simple steps. Once locked in place, the bike carrier can be tilted using an easy-grip foot pedal so that access to the boot is possible at any time, even with the bikes loaded.
The bike carrier is also completely collapsible – integrated carrying handles also facilitate ergonomic transport.
Easily transport up to 3 bikes and up to 2 e-bikes
Thanks to the optional extension, ORIS TRACC bike carriers can carry up to 3 bikes. The extension is simply fitted to one of the two attachment points and can therefore also be used for children’s bikes. The ORIS TRACC can also be folded up extremely compactly with the extension.
Maximum safety – clever details
The ORIS TRACC can be locked to the vehicle including mounted bikes. The lighting system is modern, durable and integrated into a UV, heat and cold-resistant plastic panelling.
An optional loading ramp is also available for easy and effortless loading with e-bikes or pedelecs. Extra-long ratchet straps are available as accessories for oversized frame and wheel geometries.
That’s why you’ll love the ORIS TRACC:
- Fitted in a few simple steps, no tools or adjustment of the clamping force required
- For up to 3 bikes thanks to an optional and adjustable extension
- Large distance between the wheel rails (optimised for e-bikes)
- Tilting mechanism with foot pedal, allowing access to the boot at any time
- Closed design to protect the bikes from splashing water and stone chipping

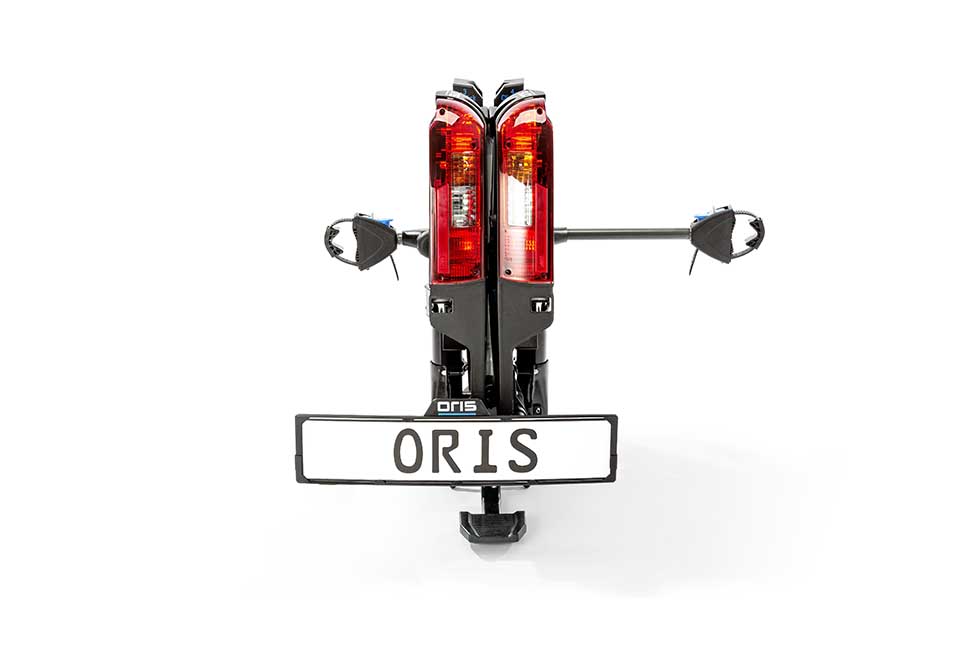

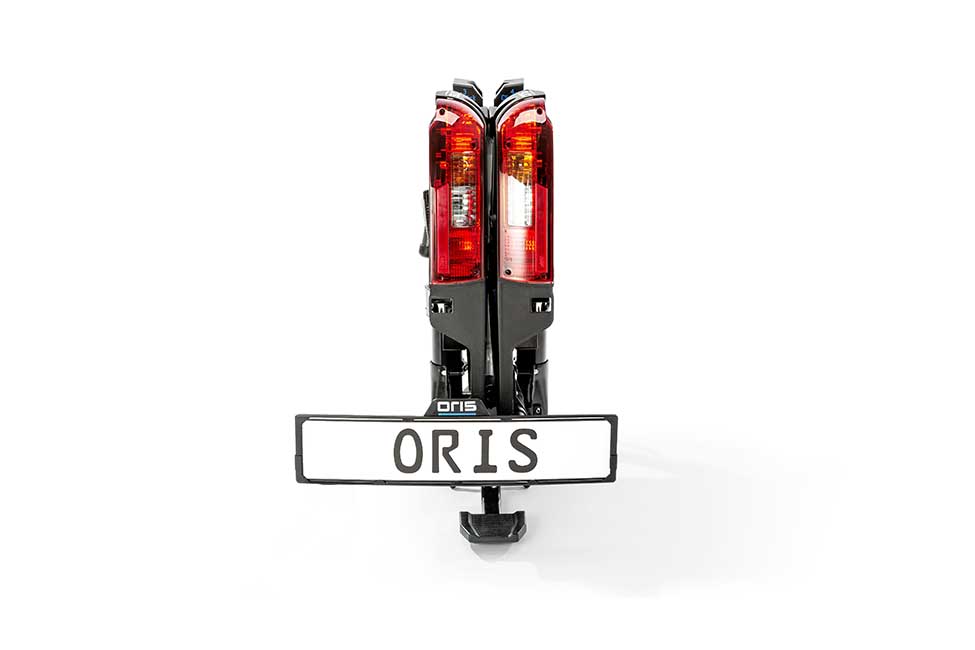

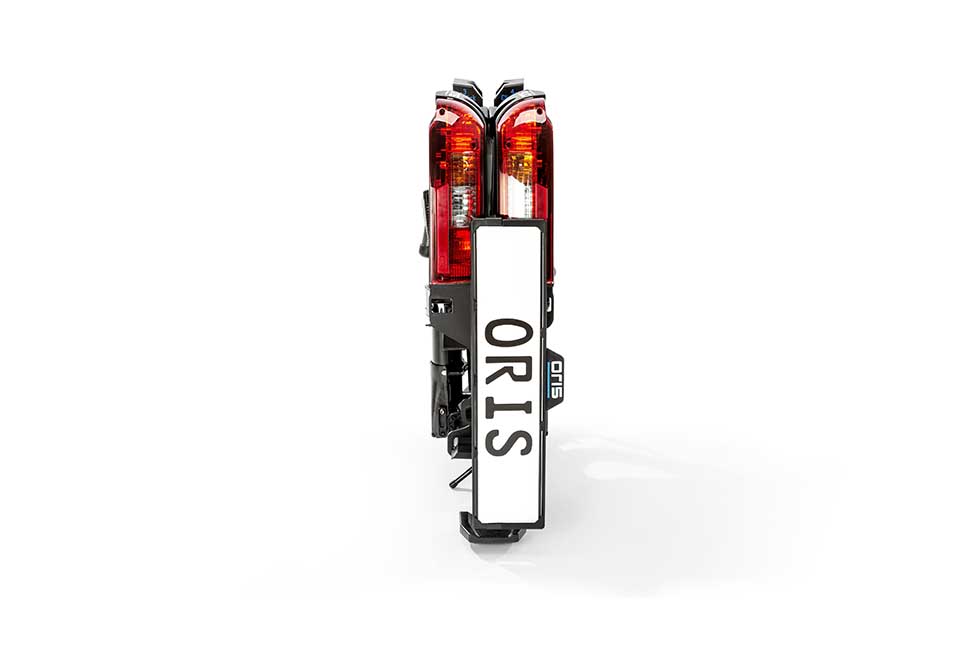

- Completely collapsible
- Convenient handling, assembly, disassembly and storage
- Integrated carrying handles facilitate ergonomic carrier transport
- Includes bag for optimum protection during space-saving storage in the boot, garage or cellar
- Flexible ratchet straps, suitable for all frame geometries
- Carrier including the mounted bikes can be locked to the vehicle
- Ratchet straps reinforced with steel band – protects against theft
- When not in use, the 13-pin plug can be secured to the carrier using a bayonet lock – no more loose cables and parts.
Technical data
| Max. Number of bicycles | 2 (expandable to 3) |
| Max. Number of e-bikes | 2 |
| Own weight | 16.9 kg (+-3%) |
| Max. Payload | 60 kg (Please always observe the vehicles maximum nose load on the towball) |
| Max. Weight 1st & 2nd bike | 30 kg each, Max. Weight 3rd bike 20 kg |
| Distance between the bike rails | 230 mm |
| Suitable for frame diameters | 25-80 mm / 80+ mm (when using the 50 cm long ratchet strap or the 50 cm long tyre ratchet strap, straps optionally available) |
| Carrier can be locked to the vehicle | Yes |
| Bicycles can be locked to the carrier | Yes |
| Can be folded down, even when loaded | Yes / up to 55° |
| Plug connection | 13-pole |
| Authorisation | EU operating licence |
| Dimensions [L x W x H] | without extension 3rd bike: 660 x 1330 x 650 mm, with 3rd bike extension: 790 x 1330 x 650 mm, Folded: 660 x 730 x 290 mm |
| Wheelbase | min./max.110cm/130cm |
| Max. tyre width Tyre width | 80 mm (when using the 50 cm long ratchet strap or the 50 cm long tyre ratchet strap, straps optionally available) |
