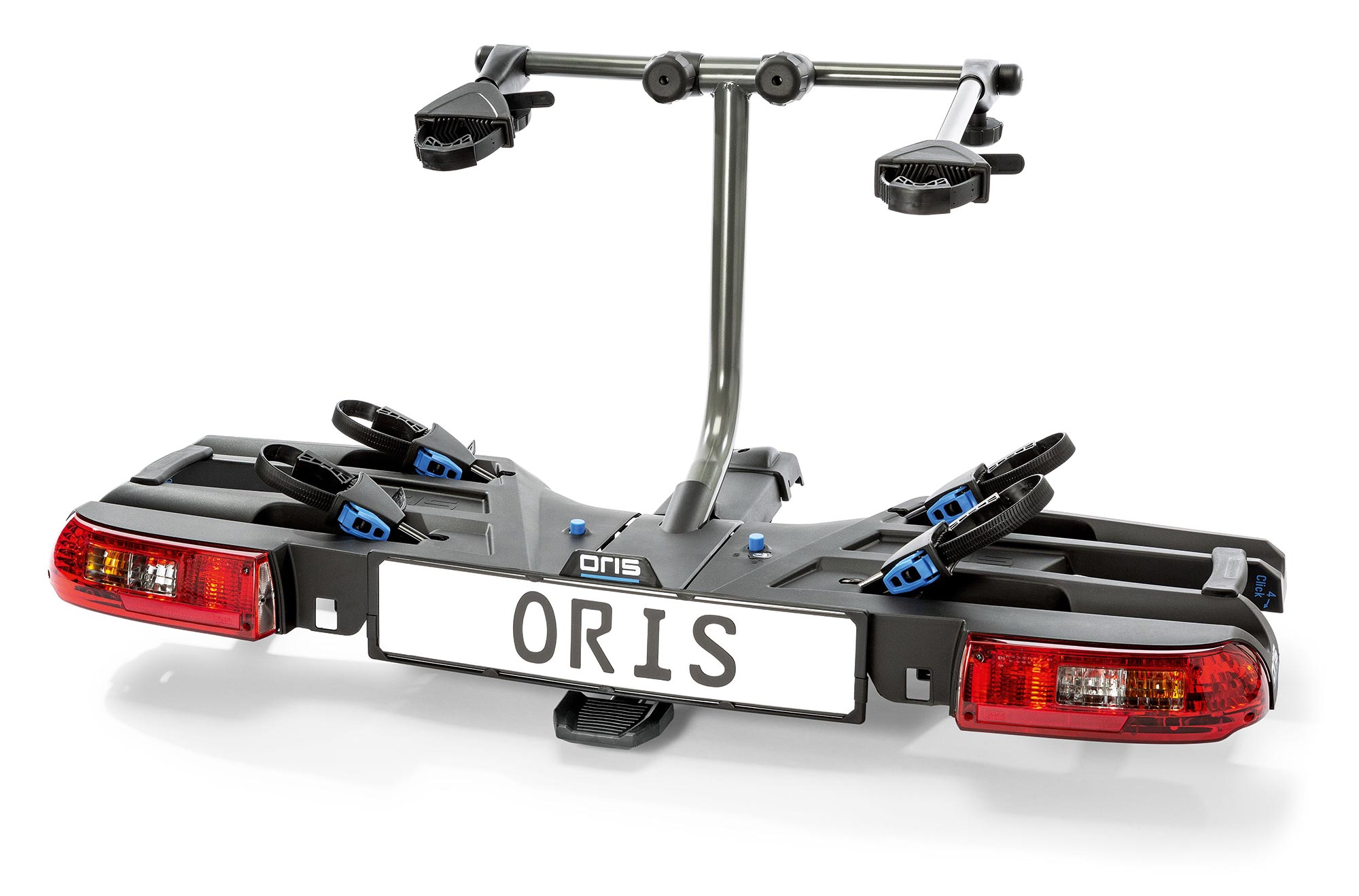

ORIS TRACC: Ready for every adventure
Flexible premium bike carrier for the towbar
Are you looking for a high-quality bike carrier for the towbar that impresses with easy installation and safe transport of bikes and e-bikes? Congratulations: You’ve come to the right place! The ORIS TRACC is the well-designed premium solution for the safe transport of bicycles, pedelecs and e-bikes on a towbar. Developed for everyday use and tested to high safety standards, it combines robust construction with ease of use.
All the benefits of the ORIS TRACC bike carrier for the towbar
- Suitable for almost any towbar
- Designed for up to two bikes, expandable to three
- Also suitable for heavy e-bikes and pedelecs
- Secure attachment via a convenient quick-release system
- Tiltable for access to the boot even when fully loaded
- Folds away completely for space-saving storage
- High stability thanks to robust build and well-thought-out design
Simple and convenient assembly
Versatile in use. Ready at any time.
The ORIS TRACC can be mounted on the towbar in just a few simple steps. The quick-release system ensures that the carrier sits securely whilst allowing it to be attached or removed quickly.
After use, the carrier can be folded up compactly and stowed away to save space. This makes it ideal for anyone who regularly transports bikes and values ease of use.

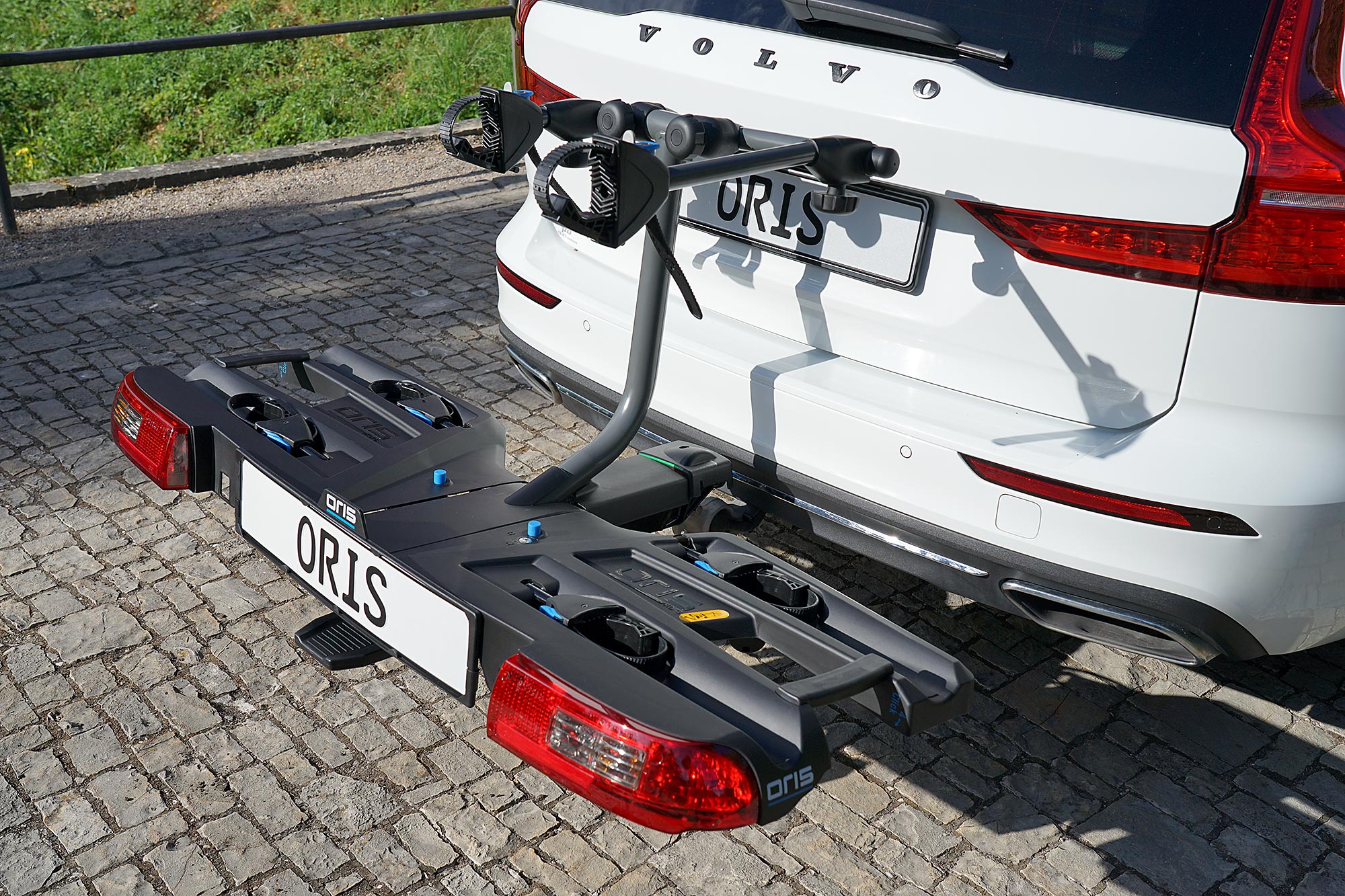

High load capacity and space even for larger bike types
Ready for bikes, e-bikes and family outings
Whether it’s a spontaneous bike ride, a weekend trip or a family holiday: the ORIS TRACC is designed for a wide range of uses. With a maximum load capacity of 60 kilograms, even heavy e-bikes can be transported safely.
The bikes are secured using sturdy frame holders and additionally held in place on the rails by wheel stops. The 230-millimetre rail spacing provides ample space even for larger bike types.

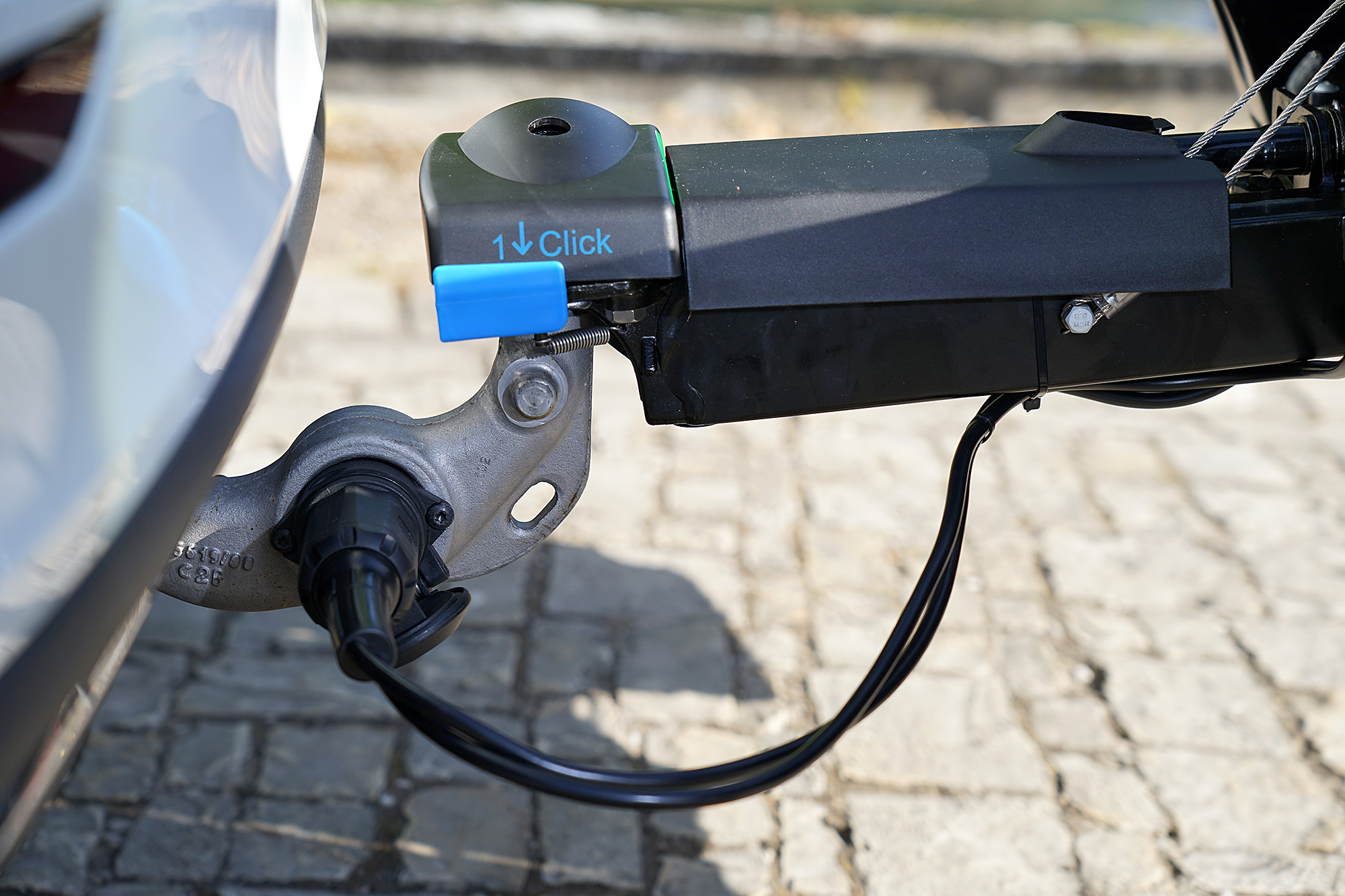

Maximum safety – clever details
Quick to install. Securely fixed.
The sturdy construction ensures that the carrier sits securely even under load. At the same time, operation remains simple and intuitive. All key functions are designed to make everyday life easier and transport as straightforward as possible.
The ORIS TRACC can also be locked to the vehicle with the bikes still mounted. An access ramp is also available as an option for easy and effortless loading of e-bikes or pedelecs.

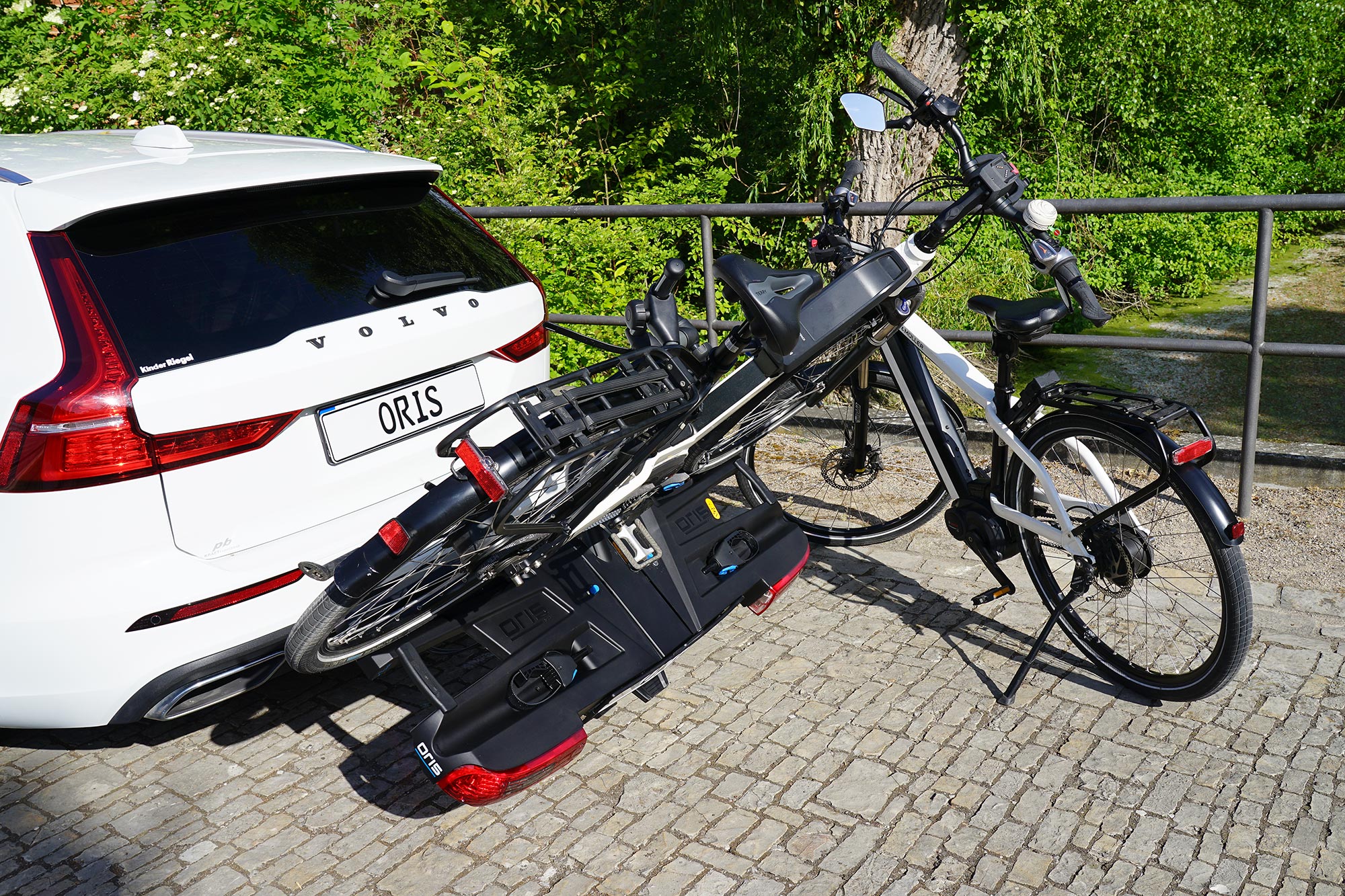

Access to the boot remains available at all times
Practical for everyday use and when travelling
A key feature is the integrated folding mechanism. A foot pedal allows the carrier to be folded down at the rear, even when loaded. This ensures access to the boot is maintained at all times.
This feature is particularly useful in everyday life, for example when shopping or on longer journeys, when luggage needs to be stowed in the vehicle.
Bike carrier offering excellent value for money
ORIS TRACC: Well thought-out down to the last detail
Technical specifications
Max. number of bikes: 2 (expandable to 3)
Max. number of e-bikes: 2
Net weight: 16.9 kg ¹
Max. load capacity: 60 kg ²
Max. weight, 1st & 2nd bicycle: 30 kg
Max. weight, 3rd bike: 20 kg
Distance between bike rails: 230 mm
Frame diameter: 25–80 mm / 80+ mm ³
Carrier lockable to the vehicle: Yes
Bikes lockable to the carrier: Yes
Foldable, even when loaded: Yes / up to 55°
Plug connection: 13-pin
Type approval: EU type approval
Dimensions [L x W x H]:
- without extension for a 3rd bicycle: 660 x 1330 x 650 mm
- with extension for a third bicycle: 790 x 1330 x 650 mm
- Folded: 660 x 730 x 290 mm
Wheelbase: min. / max. 110 cm / 130 cm
Max. tyre width: 8 cm / 80 mm ⁴
¹ Weight +/- 3%
² Please always observe the maximum drawbar load on the towball.
³ ⁴ When using the 50 cm ratchet strap or the 50 cm tyre ratchet strap (straps available as optional extras).
Frequently asked questions about the ORIS TRACC bike carrier
The maximum load capacity is 60 kilograms. This makes the bike carrier suitable for transporting heavy e-bikes or pedelecs. Please always observe the instructions in the vehicle’s owner’s manual as well as the owner’s manuals for the carrier and the towbar. The lowest of the three values applies.
Thanks to its maximum load capacity of 60 kilograms, the ORIS TRACC is also designed for transporting heavy e-bikes, as long as the load capacity specifications for the towbar, the vehicle and the bike carrier are observed. The lowest of these three figures applies.
A handy tip: Removing the battery from the e-bikes reduces their weight, which affects the load capacity of the towbar. This means that even two heavier e-bikes (with the battery removed) can be transported safely.
The ORIS TRACC is designed as standard to carry two bikes. With an optional extension kit, the carrier can be expanded to carry up to three bikes. This ensures it remains versatile, whether for everyday use or for longer trips with multiple bikes.
The ORIS TRACC features a tilting mechanism operated by a foot pedal. This ensures access to the boot remains possible even when the carrier is loaded.
It is mounted directly onto the ball head of the towbar using a quick-release system. The carrier is placed in position and then securely fastened.
Both the carrier itself and the bikes can be secured against theft.
The ORIS TRACC has a net weight of 16.9 kilograms (+/- 3%). This weight offers a good balance between stability and ease of use. As a result, the carrier is still easy to install and transport without compromising on robustness in its construction.
The distance between the bike rails is 230 millimetres. This provides sufficient space to safely transport even larger bikes or e-bikes side by side, without the handlebars or frames getting in each other’s way.
The bike carrier is fitted with a 13-pin plug, which is now the standard for modern towbars. On older vehicles with a 7-pin connection, the carrier can also be used with a suitable adapter, although this will result in a limited range of functions for additional electrical features.
When unfolded, the bike measures 66 x 133 x 65 centimetres [L x W x H]. These dimensions provide sufficient space for the secure mounting of bikes whilst ensuring a stable position on the vehicle.
When folded, it’s dimensions are reduced to 66 x 73 x 29 centimetres [L x W x H]. This allows the bike carrier to be stored in a space-saving manner and easily transported, for example in the boot or in the garage.

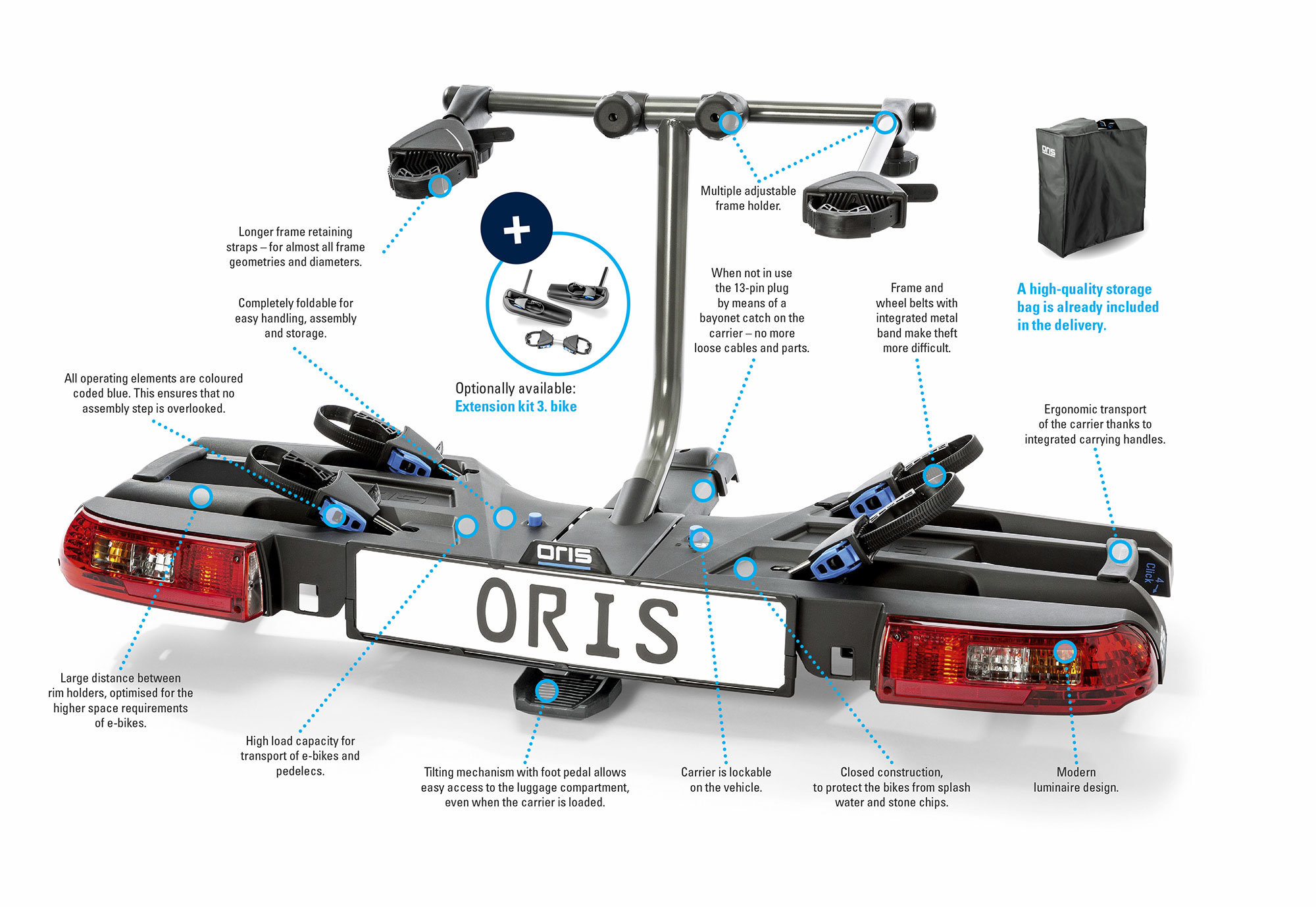

Why the ORIS TRACC bike carrier is so impressive
- Fits in place in just a few simple steps, no tools or adjustment of clamping force required
- Holds up to 3 bikes thanks to the optional and adjustable extension
- Wide spacing between the bike rails (optimised for e-bikes)
- Tilt mechanism with foot pedal, allowing access to the boot at any time
- Enclosed design to protect the bikes from spray and stone chips
- Fully foldable
- Easy to handle, assemble, dismantle and store
- Integrated carrying handles facilitate ergonomic transport
- Includes a bag for optimal protection during space-saving storage in the boot, garage or basement
- Flexible ratchet straps, suitable for all frame geometries
- Carrier lockable to the vehicle, including the mounted bikes
- Ratchet straps reinforced with steel webbing – protects against theft
- The 13-pin plug can be secured to the carrier using a bayonet lock when not in use – no more loose cables and parts.
