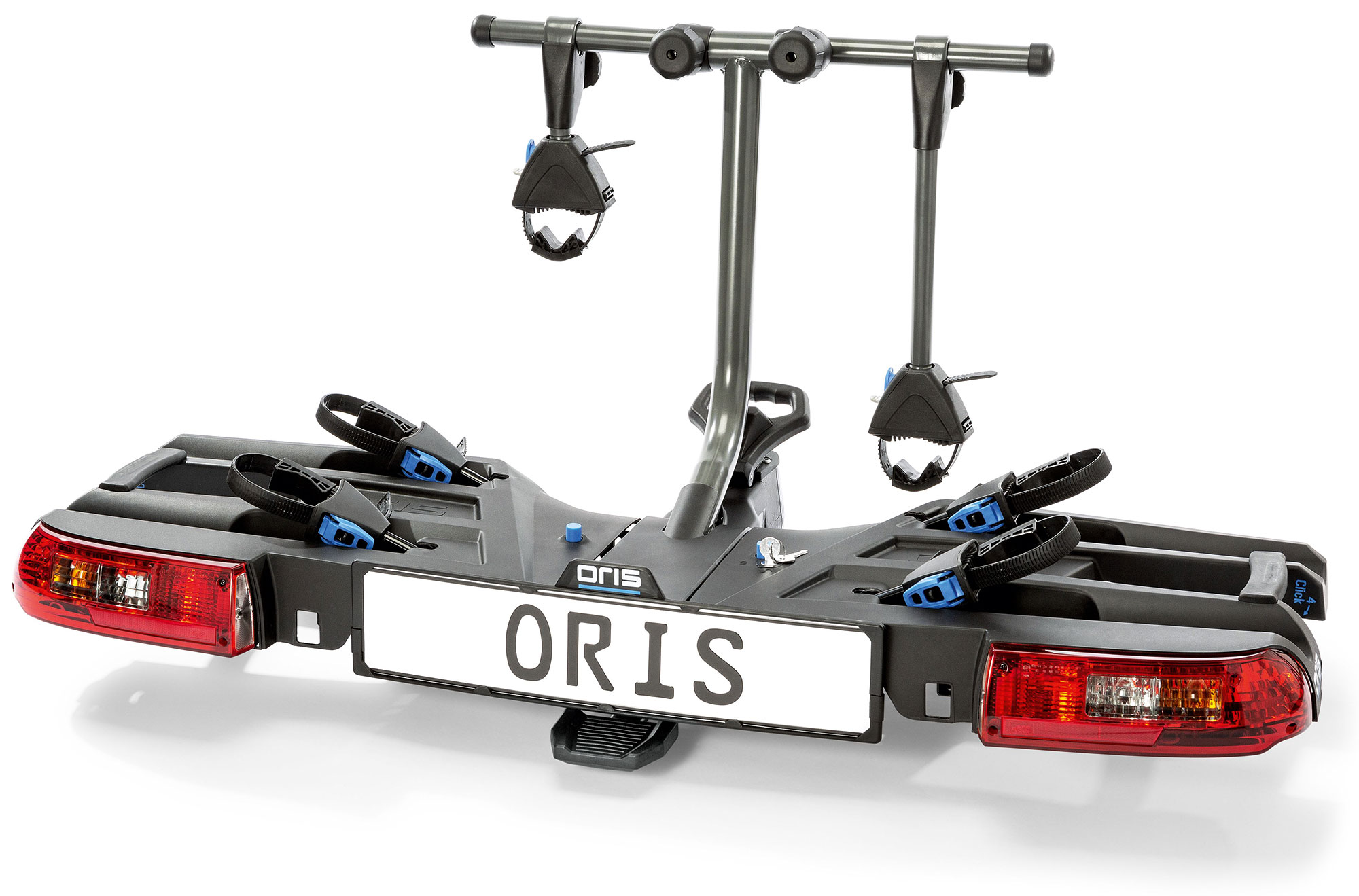

ORIS TRACC FIX4BIKE®: The game changer
Premium bike carrier for FIX4BIKE® towbars
The ORIS TRACC FIX4BIKE® is the convenient premium solution for safely transporting up to 3 bicycles or up to 2 e-bikes on the increasingly popular FIX4BIKE® towbars. Unlike conventional bike carriers, which are fixed to the towball by clamping mechanisms and often need to be aligned and re-tightened, FIX4BIKE® relies on a completely different principle. Thanks to the patented system, the carrier is automatically positioned correctly and securely locked with a single movement. No alignment, no readjustment, no physical effort. The positive and friction-locking connection ensures maximum stability even at high speeds or in demanding driving situations.
All the benefits of the ORIS TRACC FIX4BIKE® towbar bike carrier:
- Specially developed for FIX4BIKE® towbars
- Installation with just one movement - automatic positioning without adjustment
- FIX4BIKE® is the ADAC-recommended system for bike transport
- Particularly safe and stable transport, even for heavy e-bikes
- For up to 2 bicycles (expandable to 3)
- Tiltable up to an angle of 55° for boot access
- Completely foldable for space-saving storage
- Carrier and bicycles can be locked to the vehicle
Versatile, clever and expandable
Premium bike carrier for FIX4BIKE® towbars
The ORIS TRACC FIX4BIKE® bike carrier is suitable for transporting two bicycles or e-bikes on the towbar. With the optional extension, a third bicycle can also be carried on the carrier. The bike carrier is high-quality and robust thanks to high-strength steel and aluminium connections in the load-bearing components. The halogen lighting system is modern, durable and integrated into UV-, heat- and cold-resistant plastic housing. An optional loading ramp is available for easy, low-effort loading of e-bikes or pedelecs. Extra-long ratchet straps are available as accessories for oversized frame and wheel geometries.
How the ORIS TRACC FIX4BIKE® bike carrier works so comfortably and easily
Anyone who wants to transport bicycles or e-bikes safely and conveniently with a towbar bike carrier quickly reaches the limits of classic clamping systems - especially in terms of handling and safety. With FIX4BIKE®, the clever adapter system for all FIX4BIKE® towbars, the cumbersome clamping procedure is a thing of the past. Only one movement is needed to mount and release the ORIS TRACC FIX4BIKE® bike carrier: the carrier is positioned above the towball and then simply lowered until it automatically clicks into place. This means the system can be perfectly aligned even by inexperienced users. Removal is just as easy. Pull the handle and the bike carrier is released from the vehicle.

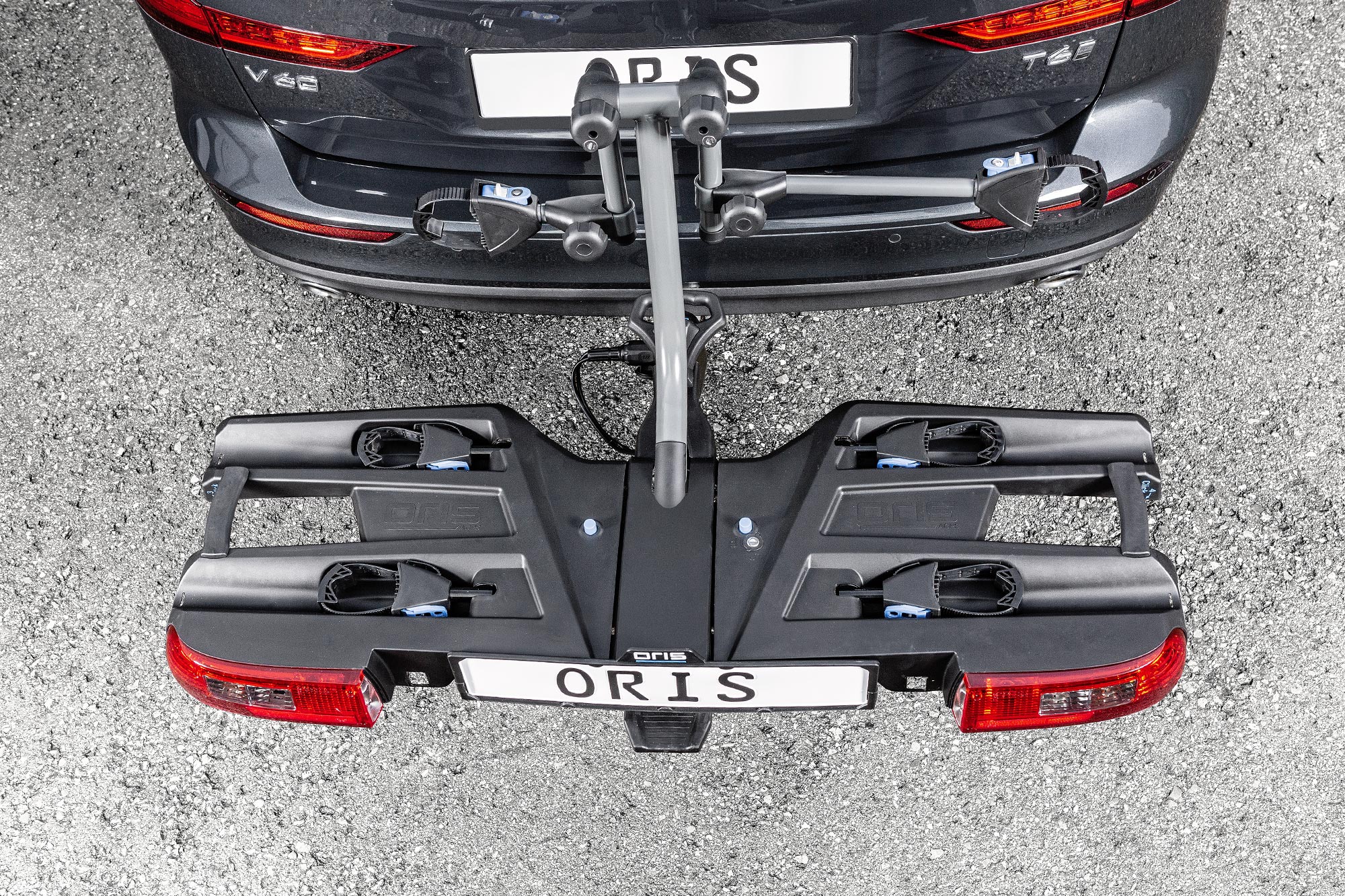

Unbeatably safe and comfortable
With the ORIS TRACC FIX4BIKE®, bike transport becomes not only more convenient but also unbeatably safe. The forces that occur are not transmitted only via the towball, as with conventional clamping systems, but largely via two special pins, known as FIX4BIKE® pins, located on the sides of the ball neck.
Together with the FIX4BIKE® receiver on the carrier, the pins of the FIX4BIKE® towbar ensure an absolutely positive and friction-locking connection to the ball neck and therefore to the vehicle: the ORIS TRACC FIX4BIKE® sits absolutely firmly on both the horizontal and vertical axes and easily withstands emergency braking or sudden evasive manoeuvres.
"By far the easiest installation"
FIX4BIKE®: The ADAC-recommended system for particularly easy bike transport
Many conventional bike carriers are not always easy to lock onto the towbar. FIX4BIKE® from ORIS is very different: the system was explicitly recommended by the ADAC for its ease of use. In its major 2025 bike carrier comparison test, the mobility club described the FIX4BIKE® system as "by far the easiest installation" in the entire comparison.
The ORIS TRACC FIX4BIKE® bike carrier is ready to use this quickly and easily

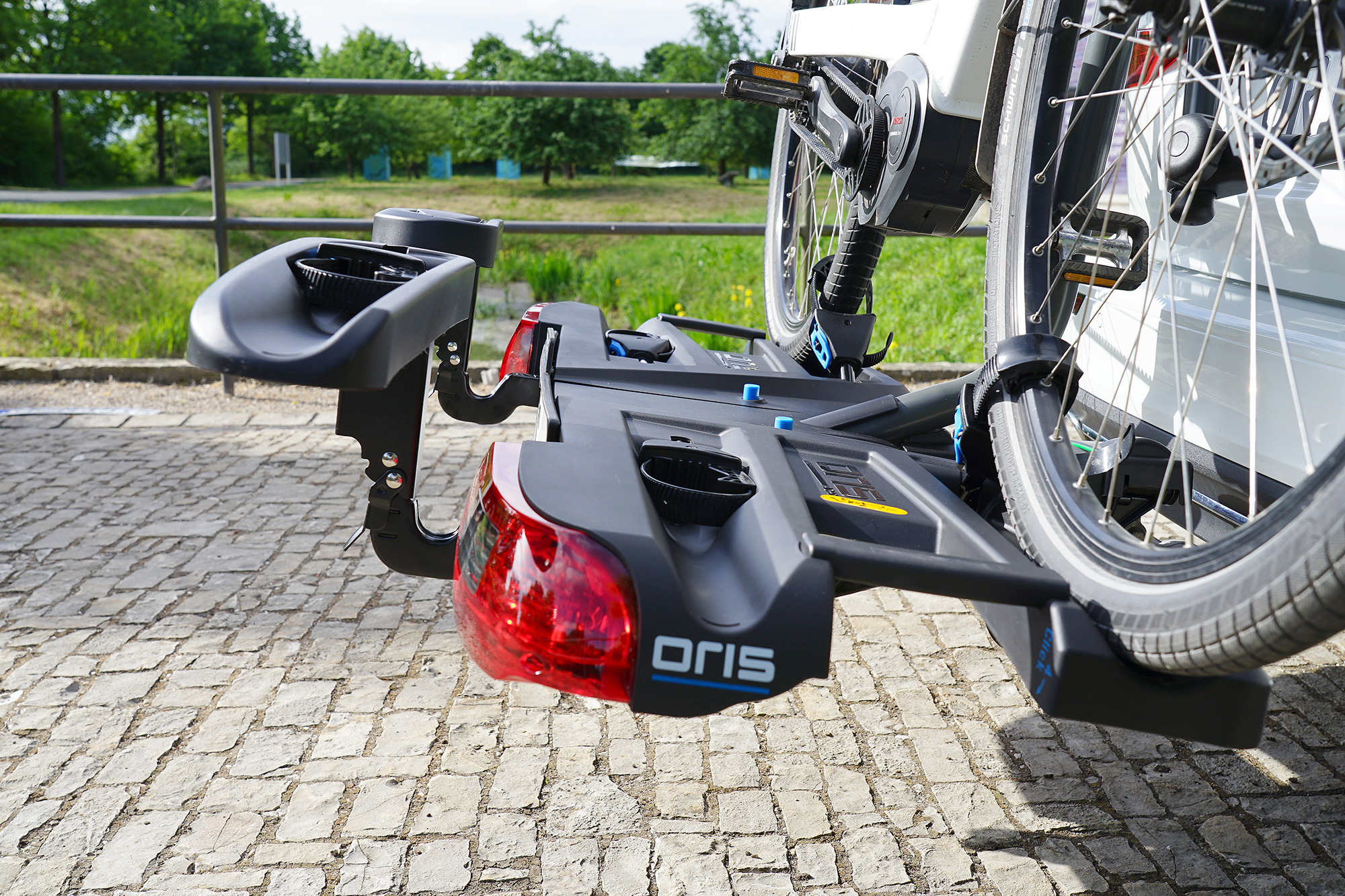

Compact bike carrier for wide tyres
The ORIS TRACC FIX4BIKE® combines compact design with high flexibility and is ideal for modern bicycles with wide tyres. Generous spacing between the wheel rails ensures that even e-bikes can be transported safely and without collision. Despite its sturdy construction, the carrier remains compact and can be folded completely - perfect for space-saving storage in the boot, garage or cellar. It combines maximum everyday usability with high carrying capacity.

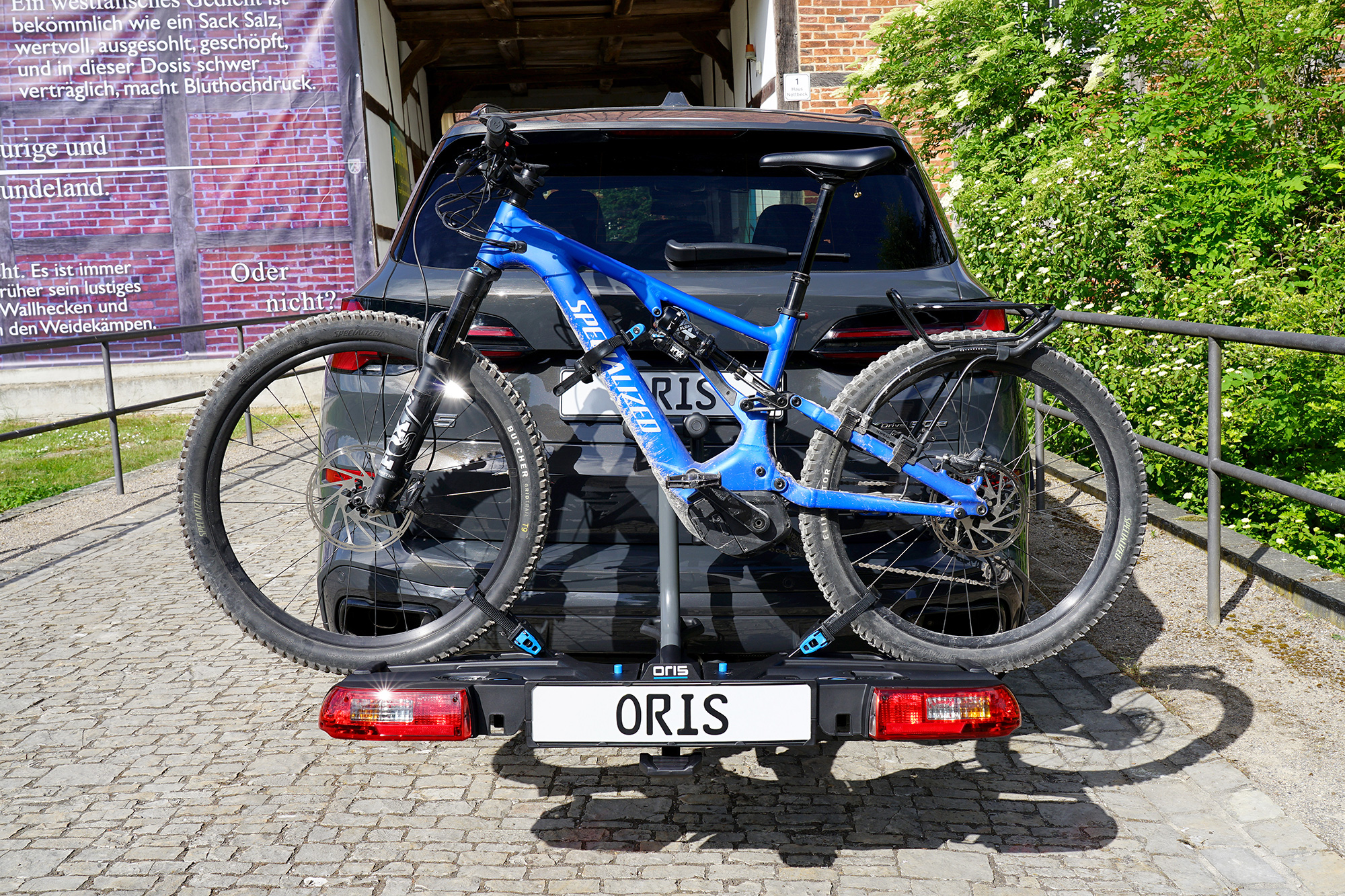

Ideal for long wheelbases
Bicycles with long wheelbases can also be transported with the ORIS TRACC FIX4BIKE® without any problem. The well-designed arrangement of the wheel holders and the large spacing between the wheel rails allow a wide range of bicycle types with wheelbases of approx. 110 to 130 cm to be carried. This makes the carrier particularly versatile - from classic bicycles to modern e-bikes. Stability remains fully assured even with demanding combinations.

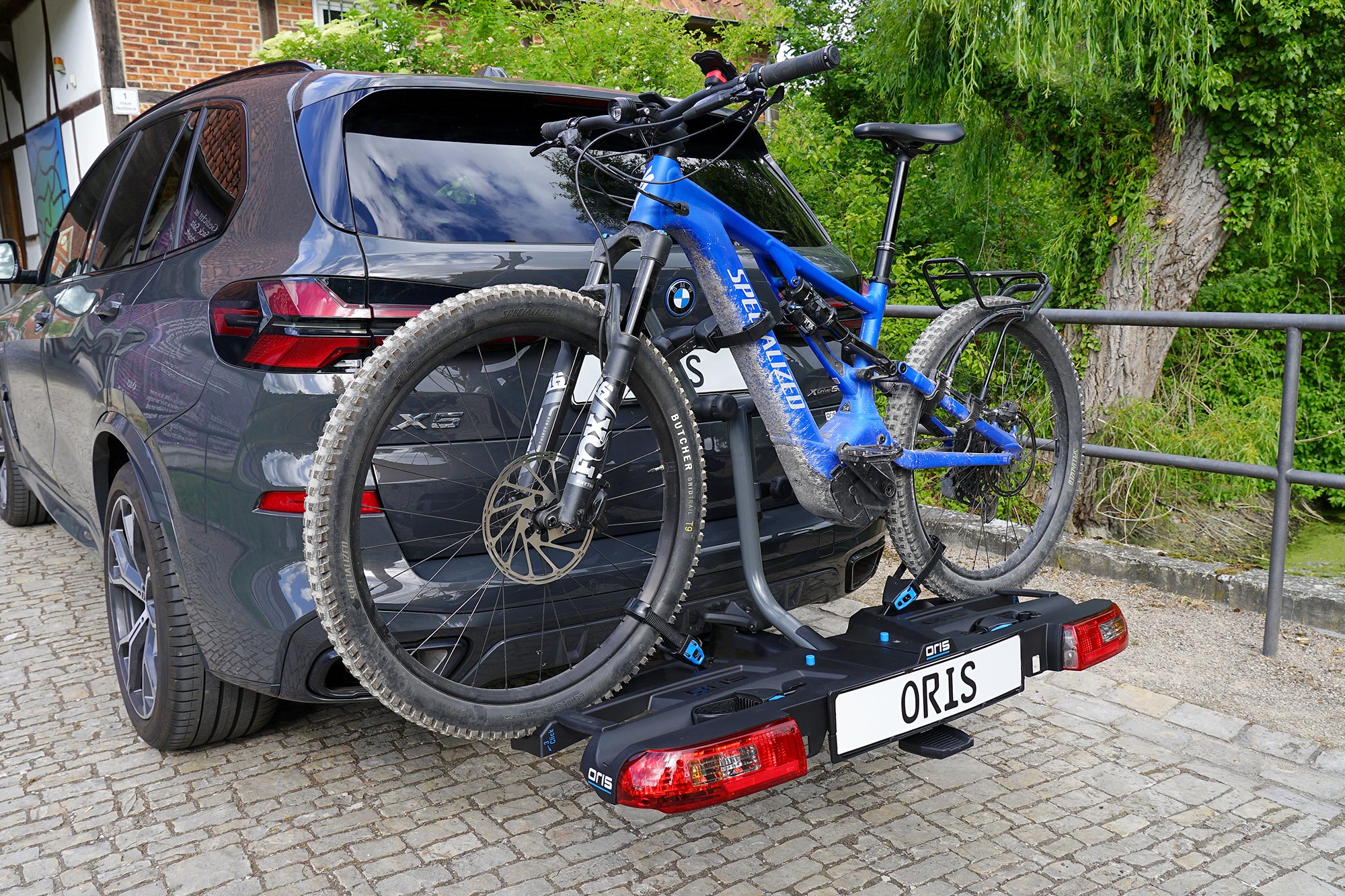

Bike carrier with adjustable frame holders
For secure fastening of a wide variety of frame geometries, the ORIS TRACC FIX4BIKE® features multiple adjustable frame holders. In combination with flexible, robust ratchet straps, bicycles can be fastened reliably - regardless of shape or size. Larger or unusual frames can also be secured without difficulty, with suitable accessory solutions available as an option. This ensures maximum flexibility and a stable connection throughout the entire journey.

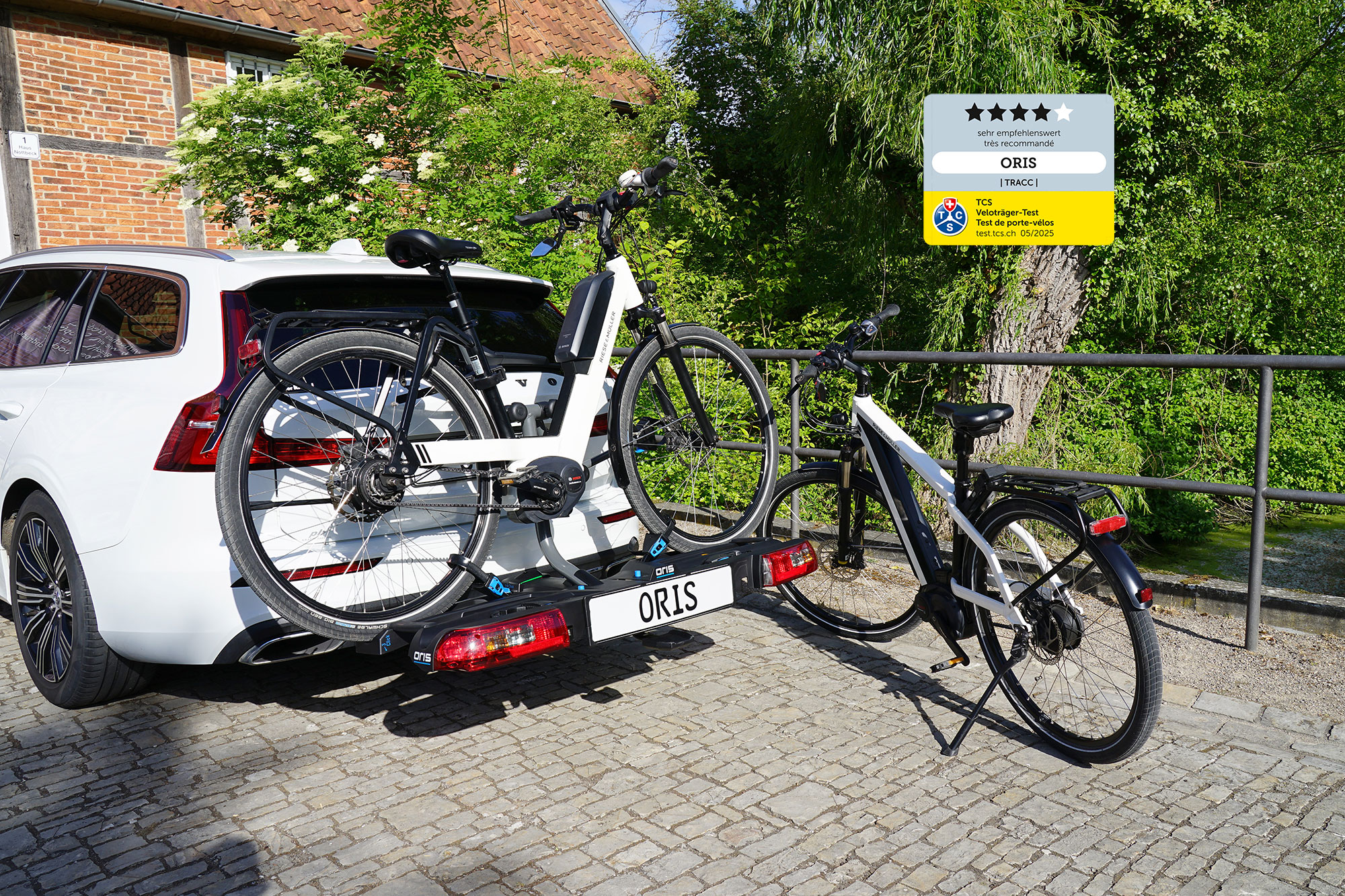

Test result "Highly recommended"
ORIS TRACC FIX4BIKE® impresses in the Touring Club Switzerland bike carrier comparison test 04/2025
In the major TCS bike carrier comparison test, the ORIS TRACC FIX4BIKE® impressed. The ORIC TRACC FIX4BIKE® bike carrier was also praised for how easy it is to mount on the towbar, and the test emphasised that with this system "incorrect installation is impossible."

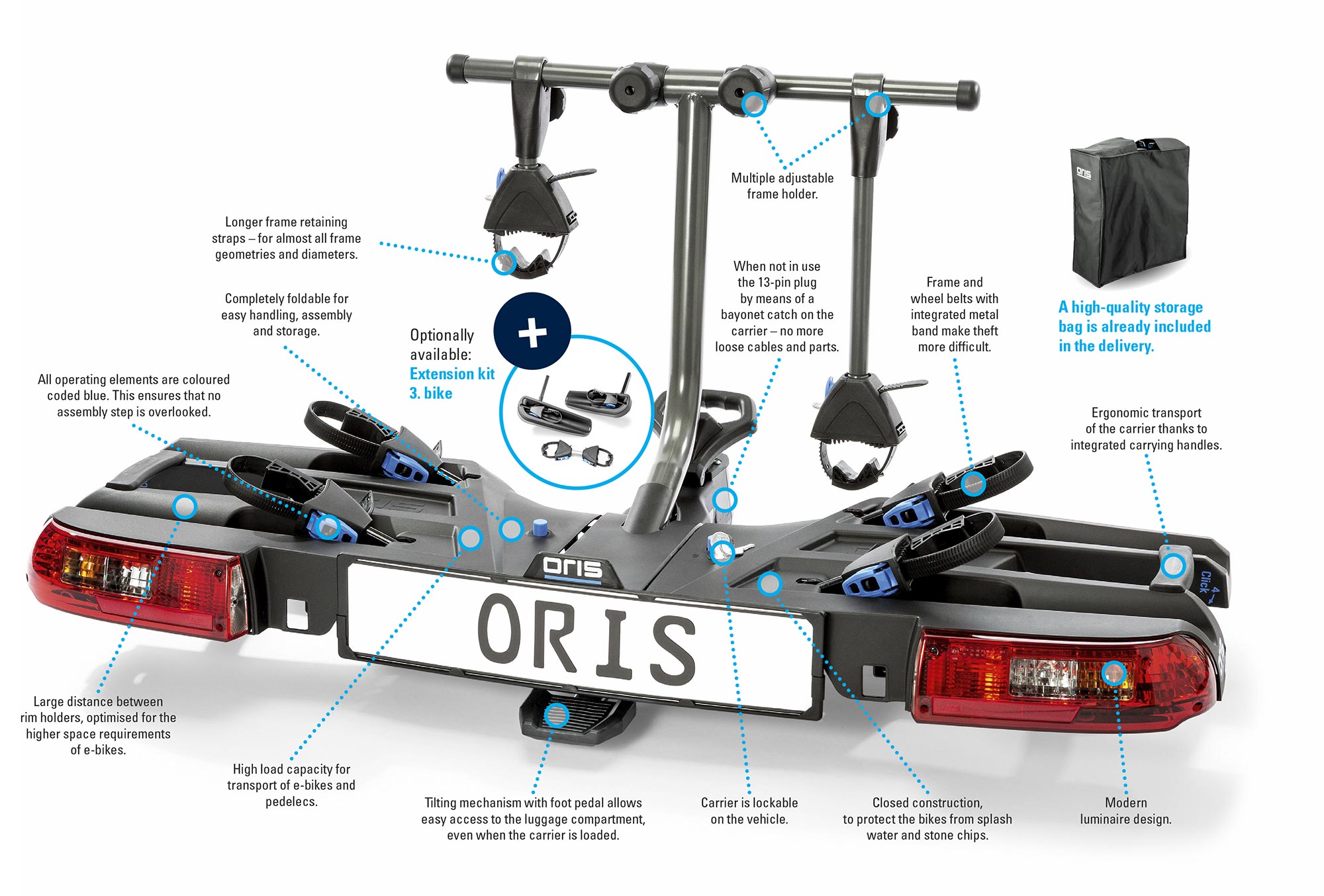

ORIS TRACC FIX4BIKE®: Thought through down to the last detail
Technical data
Max. number of bicycles:
|
2 (expandable to 3) |
|---|---|
|
Max. number of e-bikes:
|
2 |
|
Net weight:
|
18,4 kg (*1) |
|
Max. payload:
|
60 kg (*2) |
|
Max. weight, 1st & 2nd bicycle:
|
30 kg |
|
Max. weight, 3rd bicycle:
|
20 kg |
|
Spacing between wheel rails:
|
230 mm |
|
Frame diameter:
|
25-80 mm / 80+ mm (*3) |
|
Carrier lockable on vehicle:
|
Yes |
|
Bicycles lockable on carrier:
|
Yes |
|
Tiltable, even when loaded:
|
Yes / up to 55° |
|
Plug connection:
|
13-pin |
|
Approval:
|
EU type approval |
|
Dimensions [L x W x H]:
|
- without extension for a 3rd bicycle: 660 x 1330 x 650 mm - with extension for a 3rd bicycle: 790 x 1330 x 650 mm - folded: 660 x 730 x 290 mm |
|
Wheelbase:
|
min. / max. 110 cm / 130 cm |
|
Max. tyre width:
|
8 cm (*4) |
(*1) Weight +/- 3%
(*2) Always observe the maximum nose weight on the towbar towball.
(*3,*4) When using the 50 cm ratchet strap or the 50 cm tyre ratchet strap (straps available as optional accessories).
Frequently asked questions about towbar bike carriers
Yes. With a maximum payload of 60 kg, the ORIS TRACC FIX4BIKE® is also designed for transporting heavy e-bikes and offers correspondingly high load capacity as well as stable fastening systems. Please always observe both the instructions in the vehicle owner's manual and the instructions for the carrier and the towbar.)
The ORIS TRACC FIX4BIKE® is designed to transport two bicycles and is also suitable for heavy e-bikes. With the optional extension, the carrier can be expanded to hold up to three bicycles without compromising stability or safety. As a rule: max. weight 1st & 2nd bicycle 30 kg, max. weight 3rd bicycle 20 kg.
Yes. Thanks to the tilt mechanism, access to the boot remains available even when bicycles are mounted.
The ORIS TRACC FIX4BIKE® is specially designed for FIX4BIKE® towbars. The ORIS TRACC is available for conventional towballs without the FIX4BIKE® system.
If your towbar has two pins on the sides of the ball neck, your vehicle is FIX4BIKE® compatible.
For transporting two e-bikes, a combination of high load capacity, stable fastening and easy handling is crucial. Classic clamping systems quickly reach their limits, especially with heavy bicycles, because they often need to be aligned precisely and fixed with force. Modern systems therefore rely on different principles: bike carriers such as the ORIS TRACC FIX4BIKE® are connected to the towbar with a positive and friction-locking fit. As a result, the carrier sits automatically in the correct position, absolutely stable and without readjustment - a clear advantage for the safe transport of e-bikes, even on longer journeys.
The safety of a bike carrier depends largely on how it is connected to the vehicle. Many conventional systems use a clamp on the towball, which can allow play depending on installation effort and use. Particularly safe solutions rely on a positive and friction-locking connection. Systems such as FIX4BIKE® connect matching bike carriers such as the ORIS TRACC FIX4BIKE® directly to the ball neck of the towbar via two pins. This means the carrier sits absolutely securely both horizontally and vertically and reliably withstands even heavy loads such as emergency braking or sudden evasive manoeuvres.
The best bike carrier depends on individual requirements such as the number of bicycles, their weight and the desired ease of use. For many users, easy installation, high stability and convenient handling are the key criteria. While classic systems often require laborious alignment and clamping, modern solutions offer significantly more convenience. Bike carriers such as the ORIS TRACC FIX4BIKE® use a system in which the carrier automatically positions itself correctly and locks securely with just one movement. This reduces sources of error during installation while also ensuring an especially stable connection. A decisive everyday advantage.
Only bike carriers designed for high weights and ensuring an especially stable connection to the vehicle are suitable for e-bikes. In addition to load capacity and stable holding systems, the type of fastening also plays a decisive role. Systems with a positive and friction-locking connection, such as the ORIS TRACC FIX4BIKE® bike carrier, offer clear advantages here over classic clamping solutions. They provide play-free fastening, high stability and especially easy handling, even with heavy e-bikes.
Why the ORIS TRACC FIX4BIKE® bike carrier stands out
Handling
- Mounted with just one movement
- Automatic locking on the towbar
- No tools and no clamping required.
- No risk of incorrect operation
Safety
- Stable and perfectly aligned horizontally
- Maximum stability thanks to FIX4BIKE® pins on the towbar.
- Maximum driving safety: no tilting or twisting while driving
- Carrier including mounted bicycles lockable on the vehicle
- Ratchet straps reinforced with steel band - protection against theft
Product features

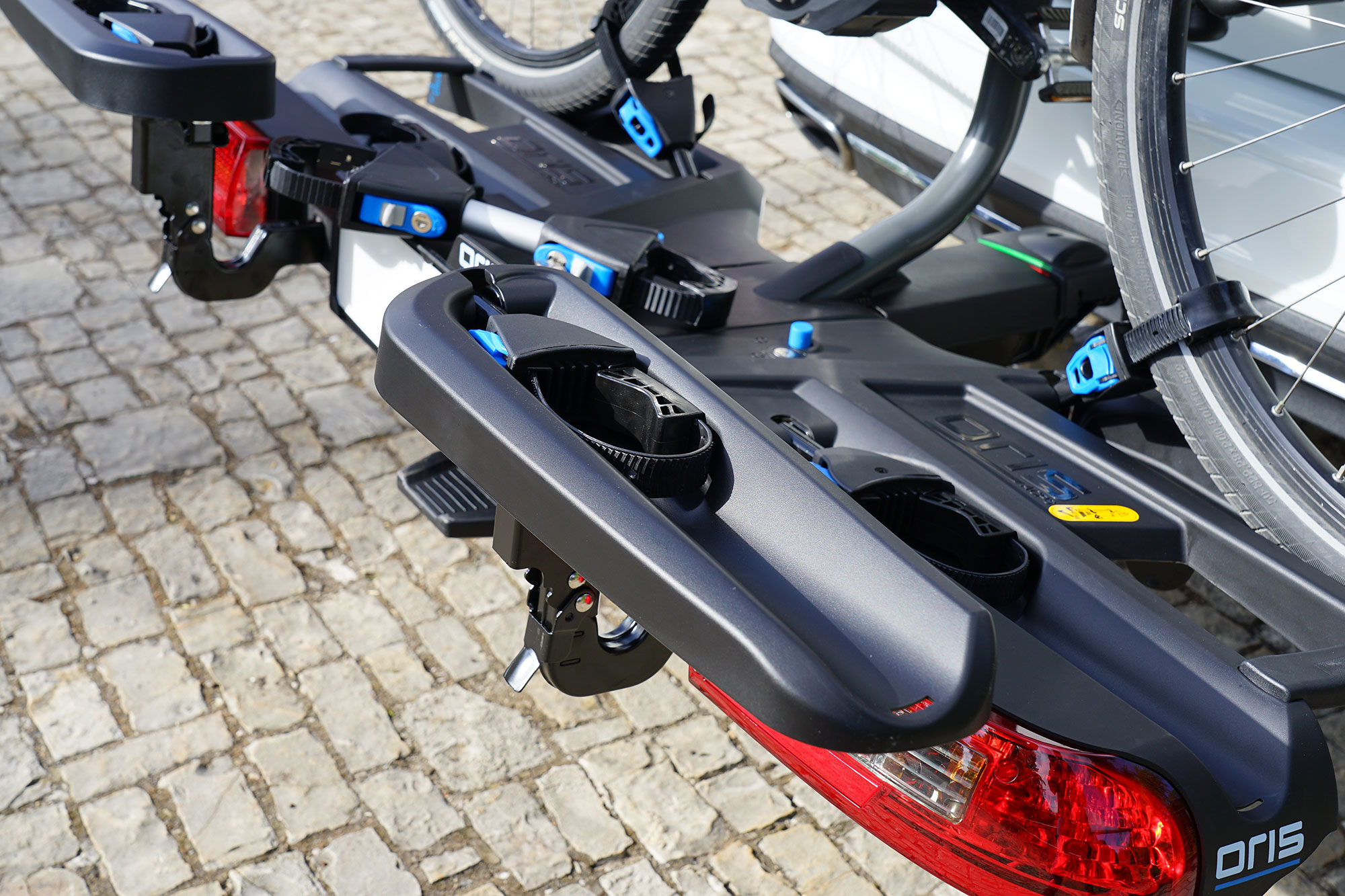

- For up to 3 bicycles thanks to the optional and adjustable extension
- Large spacing between the wheel rails (optimised for e-bikes). This reduces collision issues
- Large spacing between the wheel holders
- Tilt mechanism with foot pedal, allowing access to the boot at any time (tiltable up to an angle of 55°)
- Completely foldable. This allows storage in the boot or in small spaces
- Convenient handling, installation, removal and storage
- Includes bag for optimum protection during space-saving storage in the boot, garage or cellar
- High-quality finish and stable thanks to high-strength steel and aluminium connections in the load-bearing components
- The lighting system is modern, durable and integrated into UV-, heat- and cold-resistant plastic housing
- An optional loading ramp is available for easy, low-effort loading of e-bikes or pedelecs
- Flexible ratchet straps suitable for all frame geometries. Extra-long ratchet straps are available as accessories for oversized frame and wheel geometries
- The new and improved 3rd bike extension with two mounting points can be inserted and screwed on easily
- Closed design to protect the bicycles from spray water and stone chips
- Integrated carrying handles make ergonomic carrier handling easier
- Incl. multiple adjustable frame holder
- 13-pin plug can be fixed to the carrier with a bayonet lock when not in use - no more loose cables or parts
